Setup¶

Google Colab¶

Click the badge above to open this notebook in Colab. The notebook installs or activates dependencies in the setup cells below.

Local installation¶

Run the following from the repository root before opening this notebook locally:

julia --project=notebooks_jl -e 'using Pkg; Pkg.instantiate()'

See local-setup.md for installing Julia itself and for the full local workflow.

GLPK (required for ILP sections):

macOS: brew install glpk
Ubuntu/Debian: sudo apt-get install glpk-utils
Windows: download from http://winglpk.sourceforge.net/

Colab Instructions¶

If not in a Colab notebook, continue to the next section.

Work on a copy of this notebook: File > Save a copy in Drive.
Make sure the runtime is set to Julia. If Colab opens a Python runtime, use Runtime > Change runtime type and select Julia.
Execute the following setup cell to clone the repository when needed, activate the shared notebook project, and install dependencies. The first Colab run can take several minutes.

function load_qubonotebooks_bootstrap()
    candidates = (
        joinpath(pwd(), "scripts", "notebook_bootstrap.jl"),
        joinpath(pwd(), "..", "scripts", "notebook_bootstrap.jl"),
        joinpath(pwd(), "QUBONotebooks", "scripts", "notebook_bootstrap.jl"),
        joinpath("/content", "QUBONotebooks", "scripts", "notebook_bootstrap.jl"),
    )

    for candidate in candidates
        if isfile(candidate)
            include(candidate)
            return nothing
        end
    end

    in_colab = haskey(ENV, "COLAB_RELEASE_TAG") || haskey(ENV, "COLAB_JUPYTER_IP") || isdir(joinpath("/content", "sample_data"))
    if in_colab
        repo_dir = get(ENV, "QUBONOTEBOOKS_REPO_DIR", joinpath(pwd(), "QUBONotebooks"))
        if !isdir(repo_dir)
            println("[bootstrap] Cloning JuliaQUBO/QUBONotebooks into $repo_dir")
            run(`git clone --quiet --depth 1 https://github.com/JuliaQUBO/QUBONotebooks.git $repo_dir`)
        end
        include(joinpath(repo_dir, "scripts", "notebook_bootstrap.jl"))
        return nothing
    end

    error("Could not locate scripts/notebook_bootstrap.jl from $(pwd()).")
end

load_qubonotebooks_bootstrap()

BOOTSTRAP = Base.invokelatest(QUBONotebooksBootstrap.bootstrap_notebook, "1-MathProg")

QUBONOTEBOOKS_REPO_DIR = BOOTSTRAP.repo_dir
JULIA_NOTEBOOKS_DIR = BOOTSTRAP.notebooks_dir
JULIA_PROJECT_DIR = BOOTSTRAP.project_dir
IN_COLAB = BOOTSTRAP.in_colab;

Activate Environment¶

import Pkg

python_warning_filter = "ignore:invalid escape sequence:SyntaxWarning"
python_warning_filters = String.(filter(!isempty, split(get(ENV, "PYTHONWARNINGS", ""), ",")))
if python_warning_filter ∉ python_warning_filters
    push!(python_warning_filters, python_warning_filter)
    ENV["PYTHONWARNINGS"] = join(python_warning_filters, ",")
end

if @isdefined(JULIA_PROJECT_DIR)
    Pkg.activate(JULIA_PROJECT_DIR; io = devnull)
else
    Pkg.activate(@__DIR__; io = devnull)
end
Pkg.instantiate(; io = devnull, allow_autoprecomp = false)

Learning objectives¶

By the end of this notebook you will be able to:

Formulate linear, integer, convex nonlinear, and nonconvex nonlinear programs from a word problem.
Implement the same optimization model family in JuMP with continuous and integer decision variables.
Select appropriate LP, MILP, NLP, and MINLP solvers and interpret their reported solutions.
Explain how integrality and nonconvexity change the difficulty and reliability of optimization workflows.

Prerequisites¶

Mathematical background: Basic algebra, inequalities, objective functions, and familiarity with continuous and integer variables.
Prior notebooks: None; this is the first Julia notebook in the sequence.
Accounts required: None. Every solver this notebook uses is open source.
Julia version: Julia 1.10+ with the JuMP project environment used by this repository.

Introduction to Mathematical Programming¶

Modeling¶

The solution to optimization problems requires the development of a mathematical model. Here we will model an example given in the lecture and see how an integer program can be solved practically. This example will use as modeling language JuMP. This open-source Julia package provides flexible access to different solvers and a general modeling framework for linear and nonlinear integer programs. The examples solved here will make use of open-source solvers GLPK and CLP/CBC for linear and mixed-integer linear programming, IPOPT for interior point (non)linear programming, BONMIN for convex integer nonlinear programming, and COUENNE for nonconvex (global) integer nonlinear programming.

Problem statement¶

Suppose there is a company that produces two different products, A and B, which can be sold at different values, $\$5.5$ and $\$2.1$ per unit, respectively. The company has a single machine with electricity use capped at 17 kW/day. Producing each unit of A and B consumes $8\text{kW}/\text{day}$ and $2\text{kW}/\text{day}$ , respectively. Besides, the company can only produce at most 2 more units of B than A per day.

Linear Programming¶

This is a valid model, but it would be easier to solve if we had a mathematical representation. Assuming the units produced of A are $x_1$ and of B are $x_2$ we have

\begin{array}{rl} \displaystyle% \max_{x_1, x_2} & 5.5x_1 + 2.1x_2 \\ \textrm{s.t.} & x_2 \le x_1 + 2 \\ & 8x_1 + 2x_2 \le 17 \\ & x_1, x_2 \ge 0 \end{array}

(1)

# Loading in the Plots Package
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "Plots",
    :(using Plots),
);

function plot_lp(;ns::Integer = 1_000, sol = nothing)
    # Create empty plot
    plt = plot(;
        plot_title="LP Feasible Region",
        plot_titlevspan=0.1,
    )

    # Generate the feasible region plot of this problem
    x1 = x2 = range(-0.5, 3.5; length = ns)

    # Objective: min 5.5x₁ + 2.1x₂
    z(x1, x2) = 5.5x1 + 2.1x2

    # Constraints
    isfeasible(x1, x2) = (x1 >= 0)      && # Bound: x1 ≥ 0
                         (x2 >= 0)      && # Bound: x2 ≥ 0
                         (x2 <= x1 + 2) && # Constraint 1: x₂ ≤ x₁ + 2
                         (8x1 + 2x2 <= 17) # Constraint 2: 8 x₁ + 2 x₂ ≤ 17

    # Heatmap function
    f(x1, x2) = ifelse(isfeasible(x1, x2), z(x1, x2), NaN)

    # Plot feasible region
    heatmap!(
        plt, x1, x2, f;
        legend=:topright,
        title=raw"$ \max ~ z = 5.5 x_1 + 2.1 x_2 $",
        xlims=extrema(x1),
        ylims=extrema(x2),
        xlabel=raw"$ x_1 $",
        ylabel=raw"$ x_2 $",
    )

    # Make plots of constraints
    plot!(plt, x1, (x1) -> x1 + 2;
        label=raw"$ x_2 \leq x_1 + 2 $",
        color=:green,
    )
    plot!(plt, x1, (x1) -> (17 - 8x1) / 2;
        label=raw"$ 8 x_1 + 2 x_2 \leq 17 $",
        color=:blue,
    )

    # Nonnegativitivy constraints
    plot!(plt, zeros(ns), x2;
        label=raw"$ x_1 \geq 0 $",
        color=:purple,
    )
    plot!(plt, x1, zeros(ns);
        label=raw"$ x_2 \geq 0 $",
        color=:red,
    )

    if sol !== nothing
        # Optimal solution
        scatter!(plt, [sol[1]], [sol[2]];
            label=raw"$ (x_1^\ast, x_2^\ast) $",
            marker_z=z,
            markershape=:star8,
        )
    end

    return plt
end

plot_lp()

# Loading in the modeling framework JuMP
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "JuMP",
    :(using JuMP),
);

# Define empty model
lp_model = Model()

# Define the variables
@variable(lp_model, x[1:2] >= 0)

# Define the objective function
@objective(lp_model, Max, 5.5x[1] + 2.1x[2])

# Define the constraints
@constraint(lp_model, c1, x[2] <= x[1] + 2)

@constraint(lp_model, c2, 8x[1] + 2x[2] <= 17)

# Print the model
print(lp_model)

# Loading in the GLPK solver
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "GLPK",
    :(using GLPK),
);

# Here we solve the optimization problem with GLPK
set_optimizer(lp_model, GLPK.Optimizer)

set_silent(lp_model)

optimize!(lp_model)

# Retrieve solution value for "x"
lp_x = value.(x)

# Display solution of the problem
println(solution_summary(lp_model))
println("* x = $lp_x")

solution_summary(; result = 1, verbose = false)
├ solver_name          : GLPK
├ Termination
│ ├ termination_status : OPTIMAL
│ ├ result_count       : 1
│ ├ raw_status         : Solution is optimal
│ └

objective_bound    : Inf
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : FEASIBLE_POINT
│ ├ objective_value      : 1.40800e+01
│ └ dual_objective_value : 1.40800e+01
└ Work counters
  └ solve_time (sec)   : 4.90904e-04
* x = [1.3, 3.3]

We observe that the optimal solution of this problem is $x_1 = 1.3$ , $x_2 = 3.3$ , leading to a profit of 14.08.

# Loading in the CBC solver
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "Cbc",
    :(using Cbc),
);

# With Cbc instead:
set_optimizer(lp_model, Cbc.Optimizer)

set_silent(lp_model)

optimize!(lp_model)

# Retrieve solution value for "x"
lp_x = value.(x)

# Display solution of the problem
println(solution_summary(lp_model))
println("* x = $lp_x")

solution_summary(; result = 1, verbose = false)
├ solver_name          : COIN Branch-and-Cut (Cbc)
├ Termination
│ ├ termination_status : OPTIMAL
│ ├ result_count       : 1
│ ├ raw_status         : Cbc_status          = finished - check isProvenOptimal or isProvenInfeasible to see if solution found (or check value of best solution)
Cbc_secondaryStatus = unset (status_ will also be -1)

│ └ objective_bound    : 1.40800e+01
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : NO_SOLUTION
│ ├ objective_value      : 1.40800e+01
│ └ relative_gap         : 0.00000e+00
└ Work counters
  ├ solve_time (sec)   : 1.56808e-03
  └ node_count         : 0
* x = [1.3, 3.3]
Presolve 0 (-2) rows, 0 (-2) columns and 0 (-4) elements
Optimal - objective value 14.08
After Postsolve, objective 14.08, infeasibilities - dual 0 (0), primal 0 (0)
Optimal objective 14.08 - 0 iterations time 0.002, Presolve 0.00

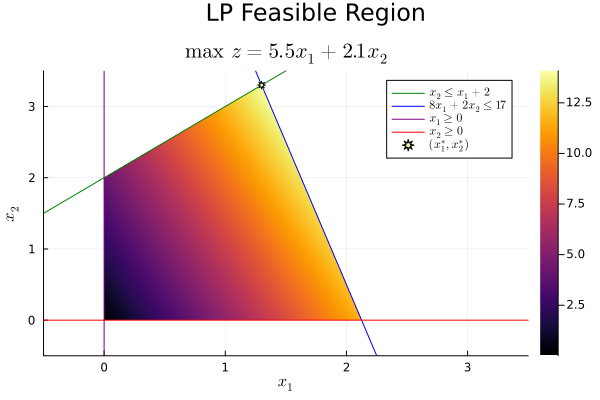

plot_lp(;sol = lp_x)

The solvers GLPK and CLP implement the simplex method (with many improvements) by default, but we can also use an interior point method through the solver IPOPT (interior point optimizer). IPOPT is able to solve not only linear but also nonlinear problems.

# Loading in the Ipopt solver
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "Ipopt",
    :(using Ipopt),
);

# Using Ipopt for an interior point method
set_optimizer(lp_model, Ipopt.Optimizer)
set_silent(lp_model)

optimize!(lp_model)

# Retrieve solution value for "x"
lp_x = value.(x)

# Display solution of the problem
println(solution_summary(lp_model))
println("* x = $lp_x")


******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

solution_summary(; result = 1, verbose = false)
├ solver_name          : Ipopt
├ Termination
│ ├ termination_status : LOCALLY_SOLVED
│ ├ result_count       : 1
│ └ raw_status         : Solve_Succeeded
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : FEASIBLE_POINT
│ ├ objective_value      : 1.40800e+01
│ └ dual_objective_value : 1.40800e+01
└ Work counters
  ├ solve_time (sec)   : 1.27070e-01
  └ barrier_iterations : 8
* x = [1.3000000135344931, 3.300000029213091]

We obtain the same result as previously, but notice that the interior point method reports a solution subject to a certain tolerance, given by its convergence properties when it can get infinitesimally close (but not directly at) the boundary of the feasible region.

From Linear Programming to Integer Programming¶

The LP above allows fractional decisions, which is useful for production rates but not for yes/no or count decisions. When the variables must be integers, the feasible region becomes a set of discrete points rather than a filled polygon. Solvers such as GLPK and CBC handle this by solving LP relaxations inside a branch-and-bound search. This usually makes the model harder, but it also lets the formulation represent decisions such as building 0, 1, or 2 units.

Integer Programming¶

Now let’s consider that only integer units of each product can be produced, namely

\begin{array}{rl} \displaystyle% \max_{x_1, x_2} & 5.5x_1 + 2.1x_2 \\ \textrm{s.t.} & x_2 \leq x_1 + 2 \\ & 8x_1 + 2x_2 \leq 17 \\ & x_1, x_2 \geq 0 \\ & x_1, x_2 \in \mathbb{Z} \end{array}

(2)

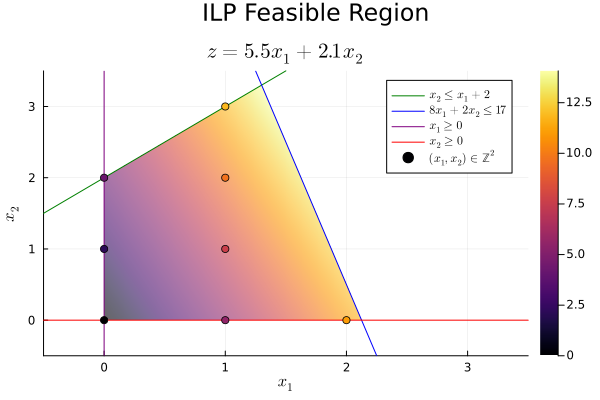

function plot_ilp(;ns::Integer = 1_000, sol = nothing)
    # Create empty plot
    plt = plot(;
        plot_title="ILP Feasible Region",
        plot_titlevspan=0.1,
    )

    # Generate the feasible region plot of this problem
    x1 = x2 = range(-0.5, 3.5; length = ns)

    # Objective: min 5.5x₁ + 2.1x₂
    z(x1, x2) = 5.5x1 + 2.1x2

    # Constraints
    isfeasible(x1, x2) = (x1 >= 0)      && # Bound: x1 ≥ 0
                         (x2 >= 0)      && # Bound: x2 ≥ 0
                         (x2 <= x1 + 2) && # Constraint 1: x₂ ≤ x₁ + 2
                         (8x1 + 2x2 <= 17) # Constraint 2: 8 x₁ + 2 x₂ ≤ 17

    # Optimal Solution
    isoptimal(x1, x2) = (sol !== nothing) && (x1 ≈ sol[1] && x2 ≈ sol[2])

    # Heatmap functions
    f(x1, x2) = ifelse(isfeasible(x1, x2), z(x1, x2), NaN)
    g(x1, x2) = ifelse(isfeasible(x1, x2), 1.0, NaN)

    # Plot relaxed feasible region
    heatmap!(
        plt, x1, x2, f;
        legend=:topright,
        title=raw"$ z = 5.5 x_1 + 2.1 x_2 $",
        xlims=extrema(x1),
        ylims=extrema(x2),
        xlabel=raw"$ x_1 $",
        ylabel=raw"$ x_2 $",
    )

    # Dim relaxed feasible region
    heatmap!(
        plt, x1, x2, g;
        alpha=0.4,
        color=:white,
        colorbar_entry=false,
        xlims=extrema(x1),
        ylims=extrema(x2),
    )

    # Make plots of constraints
    plot!(plt, x1, (x1) -> x1 + 2;
        label=raw"$ x_2 \leq x_1 + 2 $",
        color=:green,
    )
    plot!(plt, x1, (x1) -> (17 - 8x1) / 2;
        label=raw"$ 8 x_1 + 2 x_2 \leq 17 $",
        color=:blue,
    )

    # Nonnegativitivy constraints
    plot!(plt, zeros(ns), x2;
        label=raw"$ x_1 \geq 0 $",
        color=:purple,
    )
    plot!(plt, x1, zeros(ns);
        label=raw"$ x_2 \geq 0 $",
        color=:red,
    )

    # Feasible solutions
    xi = []
    xj = []

    for i = 0:4, j = 0:4
        if isfeasible(i, j) && !isoptimal(i, j)
            push!(xi, i)
            push!(xj, j)
        end
    end

    scatter!(plt, xi, xj;
        label=raw"$ (x_1, x_2) \in \mathbb{Z}^2 $",
        marker_z=z,
    )

    if sol !== nothing
        # Optimal solution
        scatter!(plt, [sol[1]], [sol[2]];
            label=raw"$ (x_1^\ast, x_2^\ast) $",
            marker_z=z,
            markershape=:star8,
        )
    end

    return plt
end

plot_ilp()

# Copy model
ilp_model = copy(lp_model)

# Retrieve variable reference
x = ilp_model[:x]

# Add integrality contraint: x₁, x₂ ∈ ℤ
set_integer.(x)

# Print the model
print(ilp_model)

set_optimizer(ilp_model, Cbc.Optimizer)
set_silent(ilp_model)

optimize!(ilp_model)

print(solution_summary(ilp_model))

# Retrieve
ilp_x = value.(x)

# Display solution of the problem
println(solution_summary(ilp_model))
println("* x = $ilp_x")

solution_summary(; result = 1, verbose = false)
├ solver_name          : COIN Branch-and-Cut (Cbc)
├ Termination
│ ├ termination_status : OPTIMAL
│ ├ result_count       : 1
│ ├ raw_status         : Cbc_status          = finished - check isProvenOptimal or isProvenInfeasible to see if solution found (or check value of best solution)
Cbc_secondaryStatus = search completed with solution

│ └ objective_bound    : 1.18000e+01
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : NO_SOLUTION
│ ├ objective_value      : 1.18000e+01
│ └ relative_gap         : 0.00000e+00
└ Work counters
  ├ solve_time (sec)   : 8.11696e-03
  └ node_count         : 0solution_summary(; result = 1, verbose = false)
├ solver_name          : COIN Branch-and-Cut (Cbc)
├ Termination
│ ├ termination_status : OPTIMAL
│ ├ result_count       : 1
│ ├ raw_status         : Cbc_status          = finished - check isProvenOptimal or isProvenInfeasible to see if solution found (or check value of best solution)
Cbc_secondaryStatus = search completed with solution

│ └ objective_bound    : 1.18000e+01
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : NO_SOLUTION
│ ├ objective_value      : 1.18000e+01
│ └ relative_gap         : 0.00000e+00
└ Work counters
  ├ solve_time (sec)   : 8.11696e-03
  └ node_count         : 0
* x = [1.0, 3.0]

Here the solution becomes $x_1 = 1, x_2 = 3$ with an objective of 11.8.

plot_ilp(; sol = ilp_x)

Why enumeration stops scaling¶

The previous ILP is small enough that listing feasible integer points is informative. Enumeration is useful here because it exposes the shape of the discrete feasible set and checks the solver result by hand. It stops being practical quickly: adding variables or increasing bounds multiplies the number of candidates before the solver even evaluates the objective.

Enumeration¶

Enumeration is practical for this small problem: the plot shows only 8 feasible integer points. If both nonnegative integer variables instead had upper bounds of 4, there would be $5^2 = 25$ candidate pairs before checking feasibility. With more variables, enumeration quickly becomes impractical. For $n$ binary variables (integer variables can be encoded in binary), the number of possible assignments is $2^n$ .

In many other applications, the possible solutions come from permutations of the integer variables (e.g., assignment problems), which grow as $n!$ with the size of the input.

This combinatorial growth makes exhaustive enumeration impractical very quickly.

# Loading in SpecialFunctions package that provides a range of mathematical functions
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "SpecialFunctions",
    :(using SpecialFunctions),
);

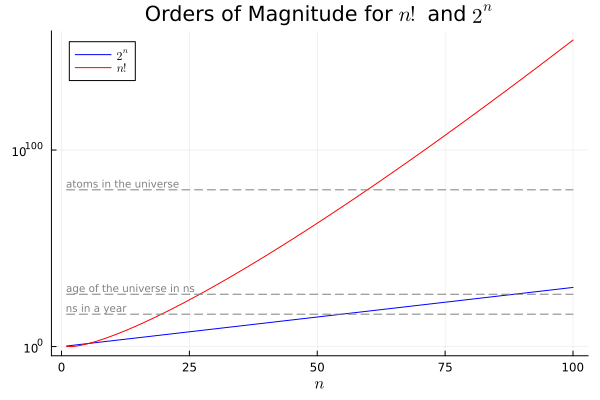

function plot_growth(n::Integer = 100)
    i = 1:n

    plt = plot(;
        title=raw"Orders of Magnitude for $ n! $ and $ 2^n $",
        xlabel=raw"$ n $",
        legend=:topleft,
        yscale=:log10,
    )

    plot!(plt, i, (i) -> 2.0^i; label=raw"$ 2^n $", color=:blue)
    plot!(plt, i, SpecialFunctions.gamma; label=raw"$ n! $", color=:red)

    plot!(plt, i, (i) -> 3.154E16; color=:gray, label = nothing, linestyle = :dash)
    annotate!(plt, first(i), 3.154E16, text("ns in a year", :gray, :left, :bottom, 7))

    plot!(plt, i, (i) -> 4.3E26; color=:gray, label = nothing, linestyle = :dash)
    annotate!(plt, first(i), 4.3E26, text("age of the universe in ns", :gray, :left, :bottom, 7))

    plot!(plt, i, (i) -> 6E79; color=:gray, label = nothing, linestyle = :dash)
    annotate!(plt, first(i), 6E79, text("atoms in the universe", :gray, :left, :bottom, 7))

    return plt
end

plot_growth()

From Integer Linear Programming to Integer Nonlinear Programming¶

Integer convex nonlinear programming¶

The following constraint: “the production of B minus 1, squared, can only be smaller than 2 minus the production of A” can be incorporated in the following convex integer nonlinear program,

\begin{array}{rl} \displaystyle% \max_{x_1, x_2} & 5.5x_1 + 2.1x_2 \\ \textrm{s.t.} & x_2 \leq x_1 + 2 \\ & 8x_1 + 2x_2 \leq 17 \\ & (x_2-1)^2 \leq 2 - x_1 \\ & x_1, x_2 \geq 0 \\ & x_1, x_2 \in \mathbb{Z} \end{array}

(3)

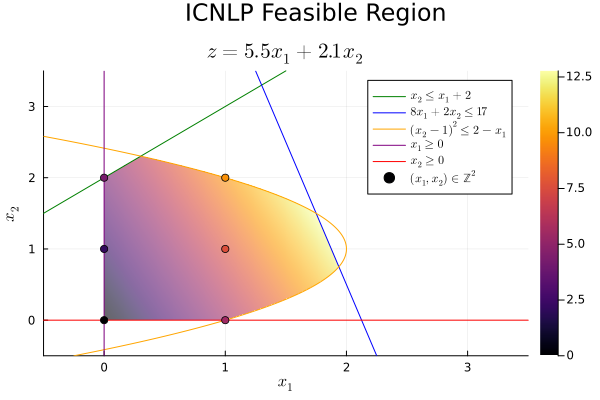

function plot_icnlp(; ns::Integer = 1_000, sol = nothing)
    # Create empty plot
    plt = plot(;
        plot_title="ICNLP Feasible Region",
        plot_titlevspan=0.1,
    )

    # Generate the feasible region plot of this problem
    x1 = x2 = range(-0.5, 3.5; length = ns)

    # Objective: min 5.5x₁ + 2.1x₂
    z(x1, x2) = 5.5x1 + 2.1x2

    # Constraints
    isfeasible(x1, x2) = (x1 >= 0)           && # Bound: x1 ≥ 0
                         (x2 >= 0)           && # Bound: x2 ≥ 0
                         (x2 <= x1 + 2)      && # Constraint 1: x₂ ≤ x₁ + 2
                         (8x1 + 2x2 <= 17)   && # Constraint 2: 8 x₁ + 2 x₂ ≤ 17
                         ((x2 - 1)^2 <= 2 - x1) # Constraint 3: (x₂ - 1)² ≤ 2 - x₁

    # Optimal Solution
    isoptimal(x1, x2) = (sol !== nothing) && (x1 ≈ sol[1] && x2 ≈ sol[2])

    # Heatmap functions
    f(x1, x2) = ifelse(isfeasible(x1, x2), z(x1, x2), NaN)
    g(x1, x2) = ifelse(isfeasible(x1, x2), 1.0, NaN)

    # Plot relaxed feasible region
    heatmap!(
        plt, x1, x2, f;
        legend=:topright,
        title=raw"$ z = 5.5 x_1 + 2.1 x_2 $",
        xlims=extrema(x1),
        ylims=extrema(x2),
        xlabel=raw"$ x_1 $",
        ylabel=raw"$ x_2 $",
    )

    # Dim relaxed feasible region
    heatmap!(
        plt, x1, x2, g;
        alpha=0.4,
        color=:white,
        colorbar_entry=false,
        xlims=extrema(x1),
        ylims=extrema(x2),
    )

    # Make plots of constraints
    plot!(plt, x1, (x1) -> x1 + 2;
        label=raw"$ x_2 \leq x_1 + 2 $",
        color=:green,
    )
    plot!(plt, x1, (x1) -> (17 - 8x1) / 2;
        label=raw"$ 8 x_1 + 2 x_2 \leq 17 $",
        color=:blue,
    )
    plot!(plt, 2 .- (x1 .- 1) .^ 2, x1,;
        label=raw"$ (x_2 - 1)^2 \leq 2 - x_1 $",
        color=:orange,
    )

    # Nonnegativitivy constraints
    plot!(plt, zeros(ns), x2;
        label=raw"$ x_1 \geq 0 $",
        color=:purple,
    )
    plot!(plt, x1, zeros(ns);
        label=raw"$ x_2 \geq 0 $",
        color=:red,
    )

    # Feasible solutions
    xi = []
    xj = []

    for i = 0:4, j = 0:4
        if isfeasible(i, j) && !isoptimal(i, j)
            push!(xi, i)
            push!(xj, j)
        end
    end

    scatter!(plt, xi, xj;
        label=raw"$ (x_1, x_2) \in \mathbb{Z}^2 $",
        marker_z=z,
    )

    if sol !== nothing
        # Optimal solution
        scatter!(plt, [sol[1]], [sol[2]];
            label=raw"$ (x_1^\ast, x_2^\ast) $",
            marker_z=z,
            markershape=:star8,
        )
    end

    return plt
end

plot_icnlp()

# Define the model
icnlp_model = copy(ilp_model)

# Retrieve variable reference
x = icnlp_model[:x]

# (x₂ - 1)² ≤ 2 - x₁
@constraint(icnlp_model, c3, (x[2] - 1)^2 <= 2 - x[1])

# Print the model
print(icnlp_model)

# BONMIN Solver
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "AmplNLWriter and Bonmin",
    :(begin
        using AmplNLWriter
        using Bonmin_jll
    end),
);

Bonmin_Optimizer() = AmplNLWriter.Optimizer(Bonmin_jll.amplexe);

set_optimizer(icnlp_model, Bonmin_Optimizer)

optimize!(icnlp_model)

icnlp_x = value.(x)

println(solution_summary(icnlp_model))
println("* x = $icnlp_x")

Bonmin 1.8.9 using Cbc 2.10.12 and Ipopt 3.14.19
bonmin:

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

NLP0012I
              Num      Status      Obj             It       time                 Location
NLP0014I             1         OPT -12.775        9 0
NLP0012I
              Num      Status      Obj             It       time                 Location
NLP0014I             1      INFEAS 0.24999981       16 0.001493
NLP0014I             2         OPT -12.4125        5 0.000587
NLP0014I             3         OPT -9.7000002        6 0.000762
NLP0014I             4         OPT -9.7000001        6 0.000729
NLP0014I             5      INFEAS 0.24999981       16 0.002403
NLP0014I             6         OPT -9.7000001        6 0.000816
NLP0012I
              Num      Status      Obj             It       time                 Location
NLP0014I             1         OPT -9.7        0 0
Cbc0004I Integer solution of -9.7 found after 6 iterations and 0 nodes (0.01 seconds)
Cbc0001I Search completed - best objective -9.699999999999999, took 6 iterations and 0 nodes (0.01 seconds)
Cbc0032I Strong branching done 2 times (33 iterations), fathomed 0 nodes and fixed 1 variables
Cbc0035I Maximum depth 0, 0 variables fixed on reduced cost

 	"Finished"

solution_summary(; result = 1, verbose = false)
├ solver_name          : AmplNLWriter
├ Termination
│ ├ termination_status : LOCALLY_SOLVED
│ ├ result_count       : 1
│ └ raw_status         : bonmin: Optimal
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : NO_SOLUTION
│ └ objective_value      : 9.70000e+00
└ Work counters
  └ solve_time (sec)   : 1.89079e-01
* x = [1.0, 2.0]

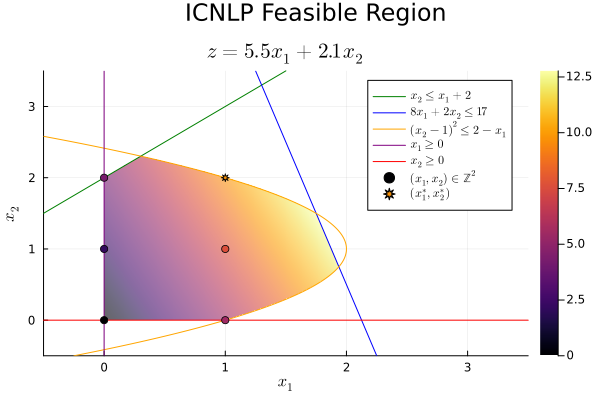

In this case the optimal solution becomes $x_1 = 1, x_2 = 2$ with an objective of 9.7.

plot_icnlp(; sol = icnlp_x)

Integer non-convex programming¶

The last constraint “the production of B minus 1 squared can only be greater than the production of A plus one half” can be incorporated in the following non-convex integer nonlinear program.

To see why, define $g(x_1, x_2) = (x_2 - 1)^2 - x_1 - \frac{1}{2}$ . This is a convex function, but the constraint $g(x_1, x_2) \geq 0$ is a superlevel-set constraint. Equivalently, it removes the convex sublevel set $g(x_1, x_2) < 0$ , leaving a feasible region that is generally non-convex.

\begin{array}{rl} \displaystyle% \max_{x_1, x_2} & 5.5x_1 + 2.1x_2 \\ \textrm{s.t.} & x_2 \leq x_1 + 2 \\ & 8x_1 + 2x_2 \leq 17 \\ & (x_2-1)^2 \leq 2-x_1\\ & (x_2-1)^2 \geq \frac{1}{2} +x_1\\ & x_1, x_2 \geq 0 \\ & x_1, x_2 \in \mathbb{Z} \end{array}

(4)

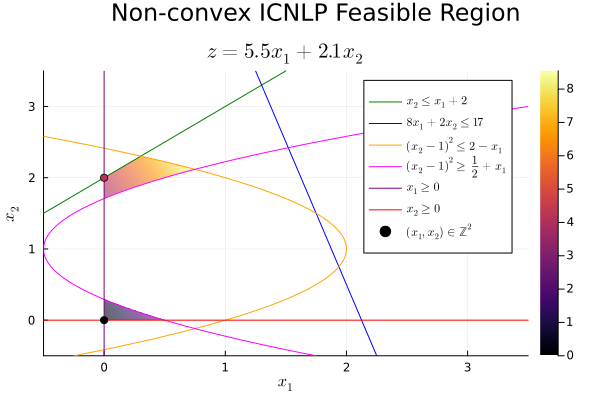

function plot_incnlp(; ns::Integer = 1_000, sol = nothing)
    # Create empty plot
    plt = plot(;
        plot_title="Non-convex ICNLP Feasible Region",
        plot_titlevspan=0.1,
    )

    # Generate the feasible region plot of this problem
    x1 = x2 = range(-0.5, 3.5; length = ns)

    # Objective: min 5.5x₁ + 2.1x₂
    z(x1, x2) = 5.5x1 + 2.1x2

    # Constraints
    isfeasible(x1, x2) = (x1 >= 0)              && # Bound: x1 ≥ 0
                         (x2 >= 0)              && # Bound: x2 ≥ 0
                         (x2 <= x1 + 2)         && # Constraint 1: x₂ ≤ x₁ + 2
                         (8x1 + 2x2 <= 17)      && # Constraint 2: 8 x₁ + 2 x₂ ≤ 17
                         ((x2 - 1)^2 <= 2 - x1) && # Constraint 3: (x₂ - 1)² ≤ 2 - x₁
                         ((x2 - 1)^2 >= 1/2 + x1)  # Constraint 4: (x₂ - 1)² ≥ 1/2 + x₁

    # Optimal Solution
    isoptimal(x1, x2) = (sol !== nothing) && (x1 ≈ sol[1] && x2 ≈ sol[2])

    # Heatmap functions
    f(x1, x2) = ifelse(isfeasible(x1, x2), z(x1, x2), NaN)
    g(x1, x2) = ifelse(isfeasible(x1, x2), 1.0, NaN)

    # Plot relaxed feasible region
    heatmap!(
        plt, x1, x2, f;
        legend=:topright,
        title=raw"$ z = 5.5 x_1 + 2.1 x_2 $",
        colorbar_label=raw"$ z $",
        xlims=extrema(x1),
        ylims=extrema(x2),
        xlabel=raw"$ x_1 $",
        ylabel=raw"$ x_2 $",
    )

    # Dim relaxed feasible region
    heatmap!(
        plt, x1, x2, g;
        alpha=0.4,
        color=:white,
        colorbar_entry=false,
        xlims=extrema(x1),
        ylims=extrema(x2),
    )

    # Make plots of constraints
    plot!(plt, x1, (x1) -> x1 + 2;
        label=raw"$ x_2 \leq x_1 + 2 $",
        color=:green,
    )
    plot!(plt, x1, (x1) -> (17 - 8x1) / 2;
        label=raw"$ 8 x_1 + 2 x_2 \leq 17 $",
        color=:blue,
    )
    plot!(plt, 2 .- (x1 .- 1) .^ 2, x1,;
        label=raw"$ (x_2 - 1)^2 \leq 2 - x_1 $",
        color=:orange,
    )
    plot!(plt, -1/2 .+ (x1 .- 1) .^ 2, x1,;
        label=raw"$ (x_2 - 1)^2 \geq \frac{1}{2} + x_1 $",
        color=:magenta,
    )

    # Nonnegativitivy constraints
    plot!(plt, zeros(ns), x2;
        label=raw"$ x_1 \geq 0 $",
        color=:purple,
    )
    plot!(plt, x1, zeros(ns);
        label=raw"$ x_2 \geq 0 $",
        color=:red,
    )

    # Feasible solutions
    xi = []
    xj = []

    for i = 0:4, j = 0:4
        if isfeasible(i, j) && !isoptimal(i, j)
            push!(xi, i)
            push!(xj, j)
        end
    end

    scatter!(plt, xi, xj;
        label=raw"$ (x_1, x_2) \in \mathbb{Z}^2 $",
        marker_z=z,
    )

    if sol !== nothing
        # Optimal solution
        scatter!(plt, [round(sol[1])], [round(sol[2])];
            label=raw"$ (x_1^\ast, x_2^\ast) $",
            marker_z=z,
            markershape=:star8,
        )
    end

    return plt
end

plot_incnlp()

# Define the model
incnlp_model = copy(icnlp_model)

# Retrieve variable reference
x = incnlp_model[:x]

# (x₂ - 1)² ≥ 1/2 + x₁
@constraint(incnlp_model, c4, (x[2] - 1)^2 >= 1/2 + x[1])

# Print the model
print(incnlp_model)

# Trying to solve the problem with BONMIN we might obtain the optimal solution,
# but we have no guarantees
set_optimizer(incnlp_model, Bonmin_Optimizer)

optimize!(incnlp_model)

# println(solution_summary(incnlp_model)) # Uncomment to print out the solution summary

if result_count(incnlp_model) > 0
    incnlp_x = value.(x)

    println("* x = $incnlp_x")
end

Bonmin 1.8.9 using Cbc 2.10.12 and Ipopt 3.14.19
bonmin:

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

bonmin: BonHeuristicDiveMIP.cpp:133: virtual int Bonmin::HeuristicDiveMIP::solution(double&, double*): Assertion `isNlpFeasible(minlp, primalTolerance)' failed.

# COUENNE Solver
# QUBONOTEBOOKS_COLAB_IMPORT_CELL
Base.invokelatest(
    QUBONotebooksBootstrap.load_notebook_packages!,
    "Couenne",
    :(using Couenne_jll),
);

Couenne_Optimizer() = AmplNLWriter.Optimizer(Couenne_jll.amplexe);

# Trying to solve the problem with global MINLP solver COUENNE
set_optimizer(incnlp_model, Couenne_Optimizer)

optimize!(incnlp_model)

println(solution_summary(incnlp_model))

if result_count(incnlp_model) > 0
    incnlp_x = value.(x)

    println("* x = $incnlp_x")
end

Couenne 0.5.8 -- an Open-Source solver for Mixed Integer Nonlinear Optimization
Mailing list: couenne@list.coin-or.org
Instructions: http://www.coin-or.org/Couenne
couenne:
ANALYSIS TEST: NLP0012I
              Num      Status      Obj             It       time                 Location
NLP0014I             1         OPT -2.7500001        8 0.001775
Couenne: new cutoff value 0.0000000000e+00 (0.010366 seconds)
NLP0014I             2         OPT -0        0 0
Loaded instance "<TEMPORARY_PATH>/model.nl"
Constraints:            4
Variables:              2 (2 integer)
Auxiliaries:            5 (4 integer)

Coin0506I Presolve 6 (-2) rows, 3 (-4) columns and 14 (-8) elements
Clp0006I 0  Obj 0 Dual inf 7.599998 (2)
Clp0006I 4  Obj -6.95
Clp0000I Optimal - objective value -6.95
Clp0032I Optimal objective -6.95 - 4 iterations time 0.002, Presolve 0.00
Clp0000I Optimal - objective value -6.95
NLP Heuristic: Couenne: new cutoff value -4.2000000000e+00 (0.011225 seconds)
NLP0014I             3         OPT -4.2        0 0
no solution.
Clp0000I Optimal - objective value -6.95
Optimality Based BT: 0 improved bounds
Probing: 0 improved bounds
NLP Heuristic: no solution.
Cbc0013I At root node, 0 cuts changed objective from -6.95 to -4.2 in 2 passes
Cbc0014I Cut generator 0 (Couenne convexifier cuts) - 0 row cuts average 0.0 elements, 1 column cuts (1 active)
Cbc0004I Integer solution of -4.2 found after 2 iterations and 0 nodes (0.00 seconds)
Cbc0001I Search completed - best objective -4.2, took 2 iterations and 0 nodes (0.00 seconds)
Cbc0035I Maximum depth 0, 0 variables fixed on reduced cost

 	"Finished"

Linearization cuts added at root node:          8
Linearization cuts added in total:              8  (separation time: 9.7e-05s)
Total solve time:                        0.001286s (0.001285s in branch-and-bound)
Lower bound:                                 -4.2
Upper bound:                                 -4.2  (gap: 0.00%)
Branch-and-bound nodes:                         0
Performance of                           FBBT:	    5.1e-05s,        5 runs. fix:          0 shrnk:          0 ubd:        1.2 2ubd:          0 infeas:          0
Performance of                           OBBT:	   0.000101s,        1 runs. fix:          0 shrnk:          0 ubd:          0 2ubd:          0 infeas:          0
solution_summary(; result = 1, verbose = false)
├ solver_name          : AmplNLWriter
├ Termination
│ ├ termination_status : LOCALLY_SOLVED
│ ├ result_count       : 1
│ └ raw_status         : couenne: Optimal
├ Solution (result = 1)
│ ├ primal_status        : FEASIBLE_POINT
│ ├ dual_status          : NO_SOLUTION
│ └ objective_value      : 4.20000e+00
└ Work counters
  └ solve_time (sec)   : 3.05550e-02
* x = [0.0, 2.0]

In this case the optimal solution becomes $x_1 = 0, x_2 = 2$ with an objective of 4.2.

plot_incnlp(; sol = incnlp_x)

We are able to solve non-convex MINLP problems. However, the complexity of these problems leads to significant computational challenges that need to be tackled.

Practice checkpoints¶

Use these checkpoints during the workshop to test the main ideas before moving on.

# =============================================================================
# EXERCISE 1: Change the objective sense
# =============================================================================
# Create a scratch version of the linear model that minimizes the same linear expression instead of maximizing it. Compare the new solution with the original optimum and identify which active constraints changed.
#
# Hint: Keep the feasible region unchanged so only the objective direction changes.
#
# Your code here:
# =============================================================================

# SOLUTION (hidden in workshop version):
# Scratch objective-sense check on representative feasible corner points.
candidate_points = [(0.0, 0.0), (4.0, 0.0), (0.0, 6.0), (2.0, 3.0)]
objective(point) = 5.5 * point[1] + 2.1 * point[2]
objective_pairs = sort([(point, objective(point)) for point in candidate_points]; by = item -> item[2])
minimizer = objective_pairs[1][1]
maximizer = objective_pairs[end][1]
println("minimizer = $(minimizer); maximizer = $(maximizer)")

minimizer = (0.0, 0.0); maximizer = (4.0, 0.0)

# =============================================================================
# EXERCISE 2: Add an integrality constraint
# =============================================================================
# Choose one continuous decision variable and restrict it to integer values. Re-solve the model and describe whether the objective value changes because the feasible set became smaller.
#
# Hint: Use a copied model or a fresh variable declaration so the original demonstration remains reproducible.
#
# Your code here:
# =============================================================================

# SOLUTION (hidden in workshop version):
# Compare a continuous incumbent with nearby integer candidates.
continuous_solution = (2.4, 1.6)
integer_candidates = [(2, 1), (2, 2), (3, 1), (3, 2)]
objective(point) = 5.5 * point[1] + 2.1 * point[2]
best_integer = sort(integer_candidates; by = objective, rev = true)[1]
println("continuous = $(continuous_solution); best_integer = $(best_integer)")

continuous = (2.4, 1.6); best_integer = (3, 2)

# =============================================================================
# EXERCISE 3: Explain a new constraint geometrically
# =============================================================================
# Add one additional linear constraint that cuts off part of the original feasible region. Sketch or describe which side of the line remains feasible and predict the effect before solving.
#
# Hint: Pick a simple bound such as a weighted sum of the two plotted variables.
#
# Your code here:
# =============================================================================

# SOLUTION (hidden in workshop version):
# Check which candidate points survive a new linear constraint.
candidate_points = [(0, 0), (4, 0), (0, 6), (2, 3), (3, 2)]
satisfies_new_constraint(point) = point[1] + point[2] <= 4
remaining_points = filter(satisfies_new_constraint, candidate_points)
println("remaining_feasible_points = $(remaining_points)")

remaining_feasible_points = [(0, 0), (4, 0)]

Summary¶

In this notebook we:

Built optimization models for a production-planning example across LP, ILP, convex INLP, and nonconvex INLP forms.
Used JuMP to declare variables, objectives, and constraints, then called solvers suited to each model class.
Compared how relaxations, integer restrictions, nonlinear constraints, and nonconvexity affect solution quality and solver behavior.

Learning objectives met: You practiced formulating optimization models, implementing them in JuMP, choosing solver classes, and interpreting solver output across increasingly difficult model families.

Next steps: Proceed to Notebook 2: QUBO and Ising Models to learn how constrained binary models can be rewritten as unconstrained quadratic objectives.

Further reading:

References¶

David E. Bernal Neira — Davidson School of Chemical Engineering, Purdue University
Pedro Maciel Xavier — Davidson School of Chemical Engineering, Purdue University
Azain Khalid — Department of Computer Science, Purdue University; Undergraduate Researcher

🔝 Go back to the top 🔝

Acknowledgments¶

This notebook was developed by:
